Vented Collection Cup

Still Spirits

Create+

• Dimensions: H 11.3 cm x W 7.1 cm x D 5.1 cm
• Vent port/tube Ø12 mm
• Barbed tube Ø10 mm
• Weight: 0.170 kg

NOTE: The Still Spirits Boiler Lid and Alembic Dome are designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. The lid and dome are reasonably flexible and sturdy enough to fit components that are within the following specifications:
• A total column & condenser height up to 1.1 m (3.6 ft) from the lid or dome.
• A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg (4.4 lbs) of off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6”) to the main column.

We recommend external support if:
• Your column & condenser exceeds the above specifications.
• The lyne arm is not vertical but angled or perpendicular running away from the column, resulting in significantly distant off-centre weight.
• If the column & condenser is noticeably leaning.

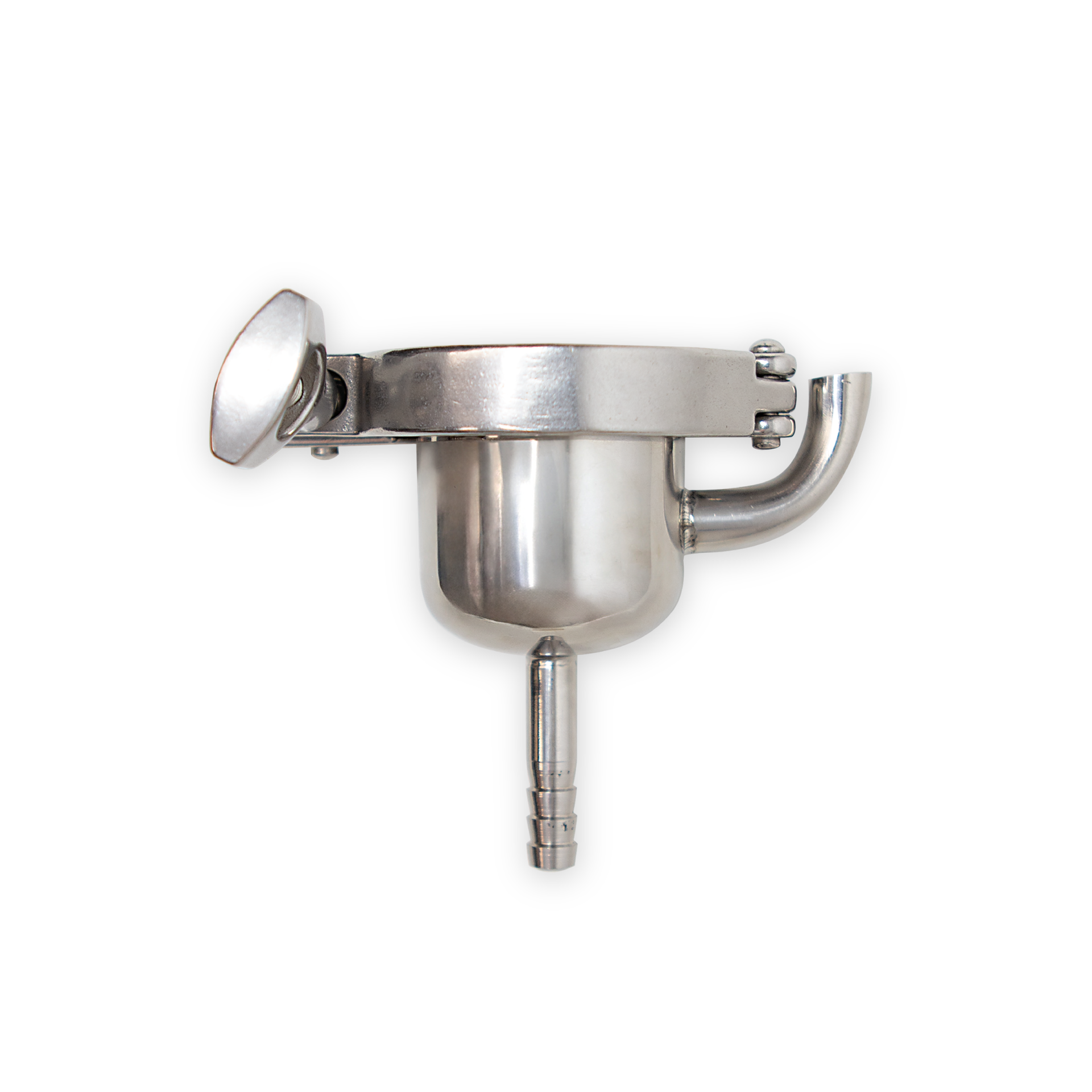

• Vented Collection Cup with Ø10 mm Barbed Tube and Vent Port
• 2" Tri-clamp
• 2" Silicone Gasket
